SSD Form Factors Explained

Switching from a hard disk drive (HDD) to a solid state drive (SSD) can be confusing. After you’ve established what kind of performance you need and how much storage space is required, it’s time to find a form factor that is compatible with your system.

Solid state drives are defined by three form factors; these are: the size of the drive, the type of connection interface, and the physical space the drive will occupy in the computer.

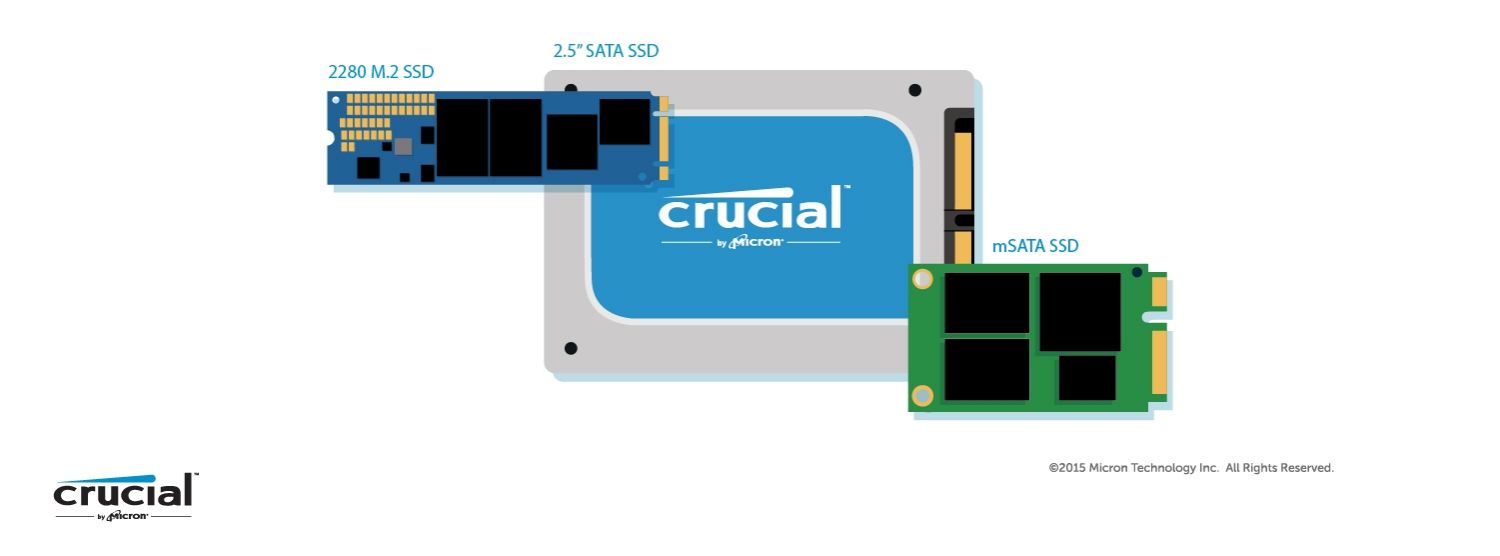

Illustration of the 3 different form factors for an SSD

2.5-Inch SSD

The standard form factor for an SSD is 2.5-inch, which fits inside the drive bay of most laptop or desktop computers. Because many users replace their hard drives with solid state drives, the 2.5-inch drive has become a standard for all HDDs and SSDs, designed to allow compatibility for those upgrading. They are designed to minimize the need to replace the connecting interface cables, making the transition to a higher performance drive as easy as possible. See the top 10 reasons to upgrade to an SSD.

mSATA SSD

A smaller form factor SSD is called mSATA. mSATA SSDs are one-eighth the size of a 2.5-inch drive and are designed to plug into an mSATA socket on a system’s motherboard. mSATA drives are used in ultra-thin and mini devices, or as a secondary drive in desktops.

M.2 SSD

The smallest form factor for SSDs is called M.2, which is about the size of a stick of gum. M.2 SSDs attach to the motherboard via an M.2 socket and are designed for space-constrained tablets and ultrabooks.

Find out more about the role an SSD plays in your computer.

SSD Form Factors

2.5-inch SSD

mSATA SSD

M.2 SSD

Installation

SATA cable (located in drive bay)

mSATA socket (located on motherboard)

M.2 socket (located on motherboard)

Best For

Laptops, desktops, servers

Ultrathin laptops, Intel® NUC systems, mini ITX
motherboards, desktops with an mSATA socket

Tablets and ultrabooks

Target Application

Primary or secondary storage

Primary storage in systems noted above; secondary storage (cache
drive)

Primary storage in tablets and ultrabooks

To determine which type of SSD is compatible with your system, use the Crucial® Advisor or System Scanner tools and find out in just a few clicks.
